How I designed APIs for Web3 — the ownership model

I got a DM at 11pm.

"Hey, nice project. Also... is this your Pinata API key? I found it in your JS bundle. pk_...5f8a. Might want to rotate that."

I opened Chrome DevTools. Sources tab. Searched "pinata".

There it was. Baked directly into the compiled JavaScript. My production Pinata API key. Readable by any visitor. No hacking required. Just Ctrl+F.

Within 20 minutes I had rotated the key, revoked the old one, and started thinking about why this happened — and how to fix it permanently.

1. The Story: The DM That Changed My Architecture

I had built ChainElect's voter registration to upload profile images directly to Pinata from the React frontend:

// ❌ THE MISTAKE — directly in the React component
const response = await axios.post('https://api.pinata.cloud/pinning/pinFileToIPFS', formData, {
  headers: {
    Authorization: `Bearer ${process.env.REACT_APP_PINATA_API_KEY}` // ← visible to everyone
  }
});

The REACT_APP_ prefix is a Vite/CRA convention that bakes the value into the compiled JavaScript bundle. It is not secret. It is not hidden. It is sent to every browser that loads your site. Anyone who opens DevTools → Network → copies the Authorization header has your API key.

In my case, the damage was minor: someone used my key to upload a few hundred megabytes of junk files, burning through my Pinata storage quota overnight. It could have been much worse.

2. The Metaphor: The Nightclub Wristband

A nightclub has a VIP room. The way IN to the VIP room is a wristband check at a bouncer's door.

If you give every guest the bouncer's master override keycard when they walk in the front door, the VIP room is not protected. Anyone can walk in and help themselves to the private bar.

The frontend is the public lobby. Your API keys are the master keycard. You never give master keycards to guests in the public lobby.

Instead, a proper system works like this:

1. A guest (frontend) requests access to the VIP room (IPFS upload).
2. They show their ticket (authenticated session) to a staff member at the desk (the backend).
3. The staff member verifies the ticket and then uses their master keycard to grant access.
4. The guest never touches the keycard.

The backend is your staff member. The frontend is the public lobby. They are not the same thing.

3. The Visual Ownership Model

BROKEN ARCHITECTURE (API key exposed)
Frontend ──────────── API Key in JS bundle ──────────────► Pinata
         (Anyone can extract this from DevTools)

SECURE ARCHITECTURE (Backend proxy)
Frontend ──── Authenticated Request ────► Backend (Express)
                                               │
                                      Validate session/auth
                                               │
                                      Use server-side API key
                                               │
                                               ▼
                                           Pinata / IPFS
                                               │
                                         Returns CID hash
                                               │
                                               ▼
                              Backend ──► Frontend (just the CID)

[!TIP] VISUAL TRIGGER FOR FRONTEND: Animate this as two data flow diagrams side by side. In the broken architecture, highlight the API key leaking into the public browser box in red. In the secure architecture, the API key never leaves the server box — animate it as a locked vault that only the backend can open.

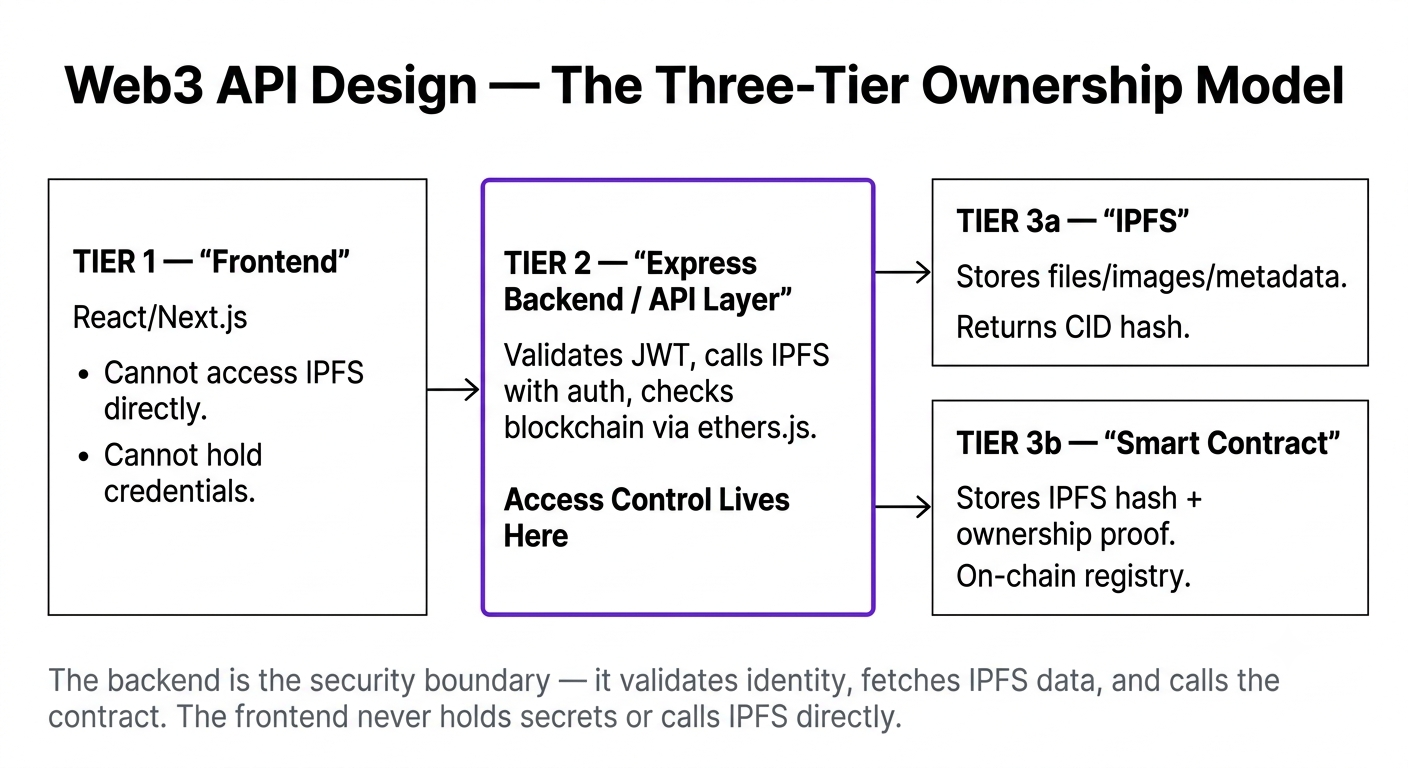

4. Technical Explanation: The Three-Layer Ownership Model

Once I refactored ChainElect to use a proper backend proxy, I discovered the natural architecture that emerges in every serious Web3 dApp:

LAYER 1 — TRUST (Blockchain)
  Stores: cryptographic proofs, ownership records, hashes
  Access: permissionless, public, immutable
  Example: contract.registerVoter(address)

LAYER 2 — FILES (IPFS / Decentralized Storage)
  Stores: images, documents, large binary data
  Access: public content-addressing by CID hash
  Example: ipfs://QmXyZ... (voter profile image)

LAYER 3 — AUTH & CACHE (Backend / Express)
  Stores: nothing permanently — it's a proxy
  Controls: API keys, session validation, rate limiting, caching
  Example: POST /api/upload → validates session → calls Pinata → returns CID

LAYER 4 — INTERFACE (Frontend / React)
  Renders: UI, reads from blockchain and backend
  Knows: nothing about API keys or private credentials
  Example: useAccount() → displays voter dashboard

Each layer has one job. Each layer trusts only the layers it directly communicates with.

5. The ChainElect Backend in Practice

Here is the actual Express proxy pattern from ChainElect's backend (server.js):

// context/ChainElectBackend/server.js (simplified)
const express = require('express');
const multer = require('multer');
const FormData = require('form-data');
const axios = require('axios');

const upload = multer({ storage: multer.memoryStorage() });

app.post('/api/upload-image', isAuthenticated, upload.single('file'), async (req, res) => {
  try {
    // 1. Server-side session check — frontend can't fake this
    if (!req.session.userId) {
      return res.status(401).json({ error: 'Unauthorized' });
    }

    // 2. Build the Pinata request server-side
    const formData = new FormData();
    formData.append('file', req.file.buffer, { filename: req.file.originalname });

    // 3. API key NEVER leaves the server
    const pinataResponse = await axios.post(
      'https://api.pinata.cloud/pinning/pinFileToIPFS',
      formData,
      {
        headers: {
          ...formData.getHeaders(),
          Authorization: `Bearer ${process.env.PINATA_API_KEY}` // server env var only
        }
      }
    );

    // 4. Return only the CID to the frontend — not the key
    res.json({ cid: pinataResponse.data.IpfsHash });
  } catch (error) {
    res.status(500).json({ error: 'Upload failed' });
  }
});

The frontend calls POST /api/upload-image with the file. It gets back a CID. It never knows the Pinata API key exists.
